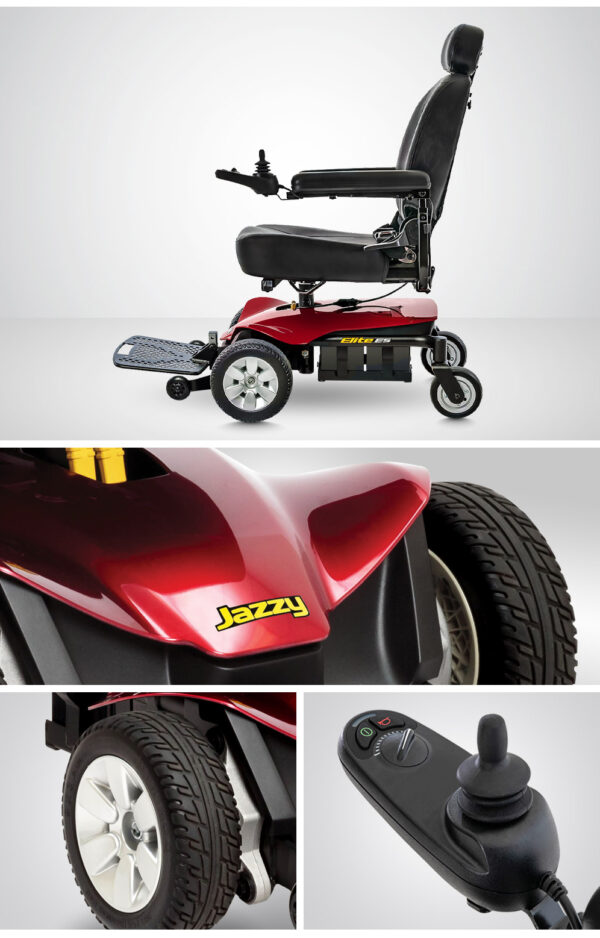

Jazzy Elite ES
$6,120.00
🏦 Save $918.00 when paying via Wire Transfer or Crypto.
Discounted Price: $5,202.00
An experience so superior, it can only be elite. The Jazzy Elite ES features large front‑drive wheels that absorb bumps and smooth out uneven surfaces for a confident ride. The comfortable high‑back seat provides all‑day support, so you stay relaxed from morning to night. Discover elite performance, lasting comfort, and uncompromising quality in every journey.
| Model: JELITEES | $6,120.00 |
Jazzy® Elite ES Features:
-
- 300 lbs. weight capacity
- Up to 4 mph
- 24.75″ turning radius
- Up to 13.5 miles per charge
- In-line, front-wheel drive technology provides tight turns around corners
- Comfortable, depth-adjustable, limited recline high-back seat with headrest
- 40-apm, PG GC 3 controller
- Optimal indoor maneuverability in small spaces
- Large front wheels for extra absorption over obstacles

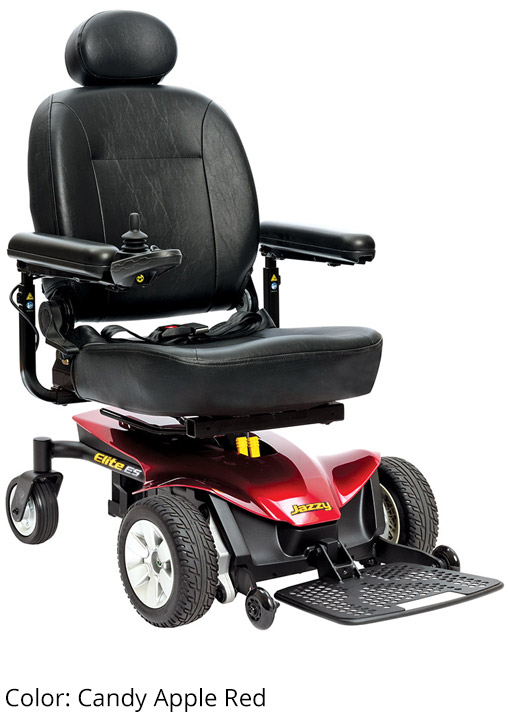

- Available in Candy Apple Red
- HCPCS Code: Group 2: Standard (K0822/K0823)
Jazzy Elite ES Specifications
FDA Class II Medical Device*
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Jazzy Elite ES
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24.75″ |
| Width1 | 22.75″ |
| Length1,2 | 34.75″/41″ (with footplate) |
| Maximum Speed3 | Up to 4.0 mph |
| Ground Clearance1 | 1.85″ at motors |
| Front Wheels | 3″ solid anti-tips |
| Drive Wheels | 9″ solid |
| Rear Wheels | 6″ solid casters |
| Drivetrain | Two motor, in-line, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 20″W x 20″D |
| High-Back Seat-to-Floor Range | 21.5” – 23.5” |
| Standard Electronics | 40A, PG GC3 |
| Battery Size (2 required) | 12 volt, U-1 |
| Standard Battery Charger | 3.5A, off-board |
| Per-Charge Range3,6 | Up to 15 miles |
| Battery Weight5 | 25 lbs. each |
| HCPCS | Group 2: Standard (K0822/K0823) |
| Weight of Heaviest Piece4 | 69 lbs. |
| Standard Seat Weight | 50.2 lbs. (comfort, high-back) |
| Standard Seat Size | 16″ x 16″-18″ 18″ x 18″-20″ 20″ x 18″-20″ |
| Warranty | 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries. |
| Notes: 1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 4 Does not include seat or battery weights. 5 Battery weight may vary based on manufacturer. 6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. |
|
| The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. | |
